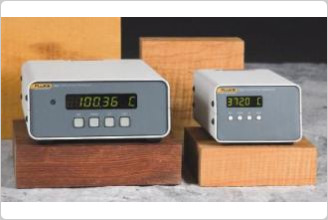

產品介紹

規格參數

溫度範圍

2100: –100 °C to 670 °C
2200: –100 °C to 800 °C

控制穩定度

2100: ±0.0005 °C to ±0.002 °C
2200: ±0.005 °C to ±0.02 °C
(depends on system design)

顯示器精度

±1.0 °C without system calibration

顯示器解析度

0.01 °

設定溫度解析度

2100: 0.0002 ° in high-resolution mode
2200: 0.01 °

輸出

2100: 100–125 nominal VAC or 230 nominal VAC (internally switchable), 50/60 Hz, 10 A max.
2200: 100–230 VAC, 50/60 Hz, 10 A max.

加熱輸出

Solid-state relay

尺寸(長x寬x厚)

2100: 72 x 172 x 250 mm (2.83 x 6.75 x 9.86 in)
2200: 72 x 114 x 178 mm (2.85 x 4.5 x 7 in)

搭配探棒

2620: RTD, 280 x 4.8 mm (11 x 0.187 in), –100 to 550 °C
2622: RTD, 229 x 4.8 mm (9 x 0.187 in), –100 to 550 °C
2624: RTD, 356 x 4.8 mm (14 x 0.187 in), –100 to 550 °C
2611: Thermistor, 229 x 5.5 mm (9 x 0.218 in), –10 °C to 110 °C (2100 controller only)
