• 紅外線中溫標準測溫傳遞源

紅外線中溫標準測溫傳遞源

•做為傳遞源不只準確,極為穩定,兩年校正一次即可
•多種溫度範圍200°C-1700°C
•解析度0.01°C
•內置5組LED數位顯示
•數位傳輸介面,使用更為方便
•鏡頭可變焦距,更容易與目標對焦而不失準
•可追溯至ITS90
•多種D:S可選擇

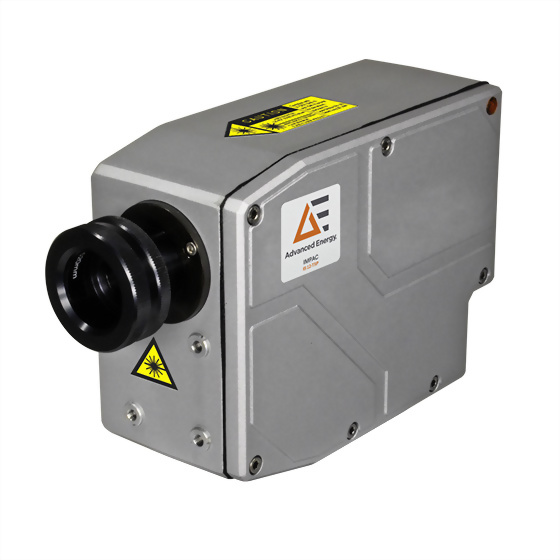

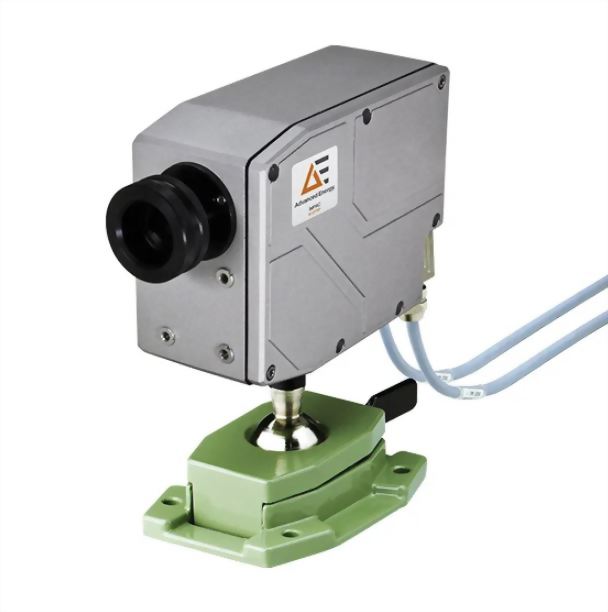

型號 : IMPAC IGA 12-TSP

IS 12-TSP和IGA 12-TSP是極其精確且具有長期穩定傳輸的標準測溫儀,能夠用於檢測校準源。由於校準源會產生極高的溫度,因此會受到嚴重的磨損。這將會導致的結果就是,隨著時間的推移,控制器上顯示的溫度不符合光譜範圍內勘測到的輻射溫度。如果校準源長時間需要進行高精准的測量,那麼我們建議要對其進行定期檢查。

IS 12-TSP或IGA 12-TSP傳輸標準測溫儀是特別為這一目的而設計的。它們在200-2520°C之間以及不同的光譜範圍內有多個測溫範圍,這說明它們能夠與帶矽或砷化銦鎵探測器的測溫儀一同檢測校準源。
TS測溫儀內的探測器是恒溫控制實現高精度的。這說明在很大程度上,這種測量不受周圍溫度變化的影響,並可實現0.01 °C的解析度。
使用一台TS測溫儀可確保能夠將國家機構規定的溫度值傳輸到您自己的校準源上,以保證可追溯至ITS90國際溫標。

為了確保測溫儀能夠符合高技術規範,TS測溫儀應由Lumasense公司進行定期檢查。然而由於該測溫儀堅固耐用,所以只需每兩年進行一次檢查。

Temperature ranges :

200 - 1020°C
250 - 1400°C
300 - 1700°C

Spectral range :

1.57 µm

Accuracy: (ε=1, t90=1 s, Tamb.= 23°C)

Below 1500°C: 0.15% of measured value in °C + 1°C
Above 1500°C: 0.25% of measured value in °C
Above 2700°C: 0.35% of measured value in °C

Repeatability

(ε=1, t90=1 s, Tamb.= 23°C) 1°C

Resolution

•Up to 1000°C: 0.01°C on interface and display;

•Above 1000°C: 0.1°C on display, 0.01°C on digital interface < 0.025% of temperature range at the analog output

Subrange

Any range adjustable within the temperature range, minimum span 51°C

Signal Processing

Fotoelectric current, digitized immediately

Power supply

24 V DC (15 - 40 V DC) or 24 V AC (12 - 30 V AC), 48 to 62 Hz

Power consumption

Max. 14 W

Analog output

Linear 0 - 20 mA or 4 - 20 mA, DC, switchable; load max. 500 Ohm

Test current output

Fixed 10 mA

Serial interface

Switchable at the pyrometer: RS232 or RS485 (addressable), half duplex; baud rate 2.4 up to 115 kBd

Display

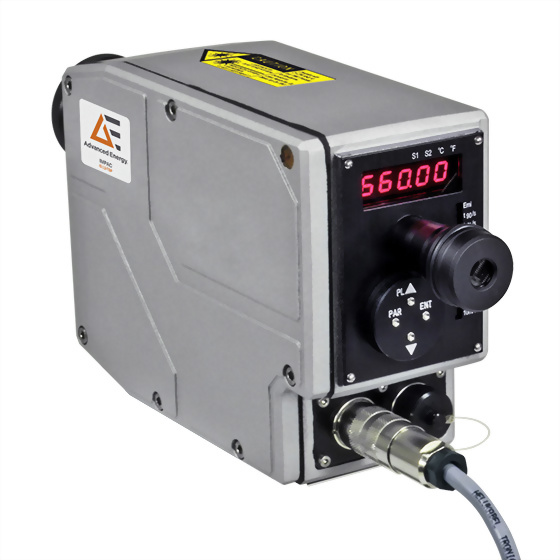

Built-in 5 digit LED display, additional function LED’s

Isolation

Power supply, digital interface, analog output are galvanically isolated against each other and housing

Parameters

Adjustable at the instrument or via serial interface: Emissivity ε, exposure time t90, clear time for maximum value storage tClear, temperature sub range, analog output 0 to 20 or 4 - 20 mA, switch points for limit switches, temperature display in °C / °F, interface RS232 or RS485, address, baud rate, test current output

Additionally adjustable (only via interface)

Keyboard lock, recalibration (with special software)

Emissivity ε

0.100 to 1.000 in 1 ⁄1000 steps

Exposure time t90

< 1 ms (with dynamical adaptation at low signal levels), factory setting 1 s, adjustable up to 10 s

Maximum value storage

Built-in single or double storage. Clearing with adjusted time tclear, extern, via interface or automatically with the next measuring object

Limit switches

2 relay outputs (change-over contacts), switch power max. 30 W (Imax: 1 A, Umax: 60 V DC)

Sighting

Built-in parallax free thru-lens view finder; additionally laser targeting light (max. power level < 1 mW, λ = 630 - 680 nm, CDRH class II) (at IS 12-TSP with temperature range 850 - 2520°C only with view finder)

Control panel

4 keys, operate with tip of ball-point pen

Protection class

IP65 (DIN 40 050)

Ambient temperature

0 to 60°C at the housing

Storage temperature

-20 to 70°C

Relative Humidity

No condensating conditions

Weight

2.2 kg

CE-label

According to EU directives about electromagnetic immunity
